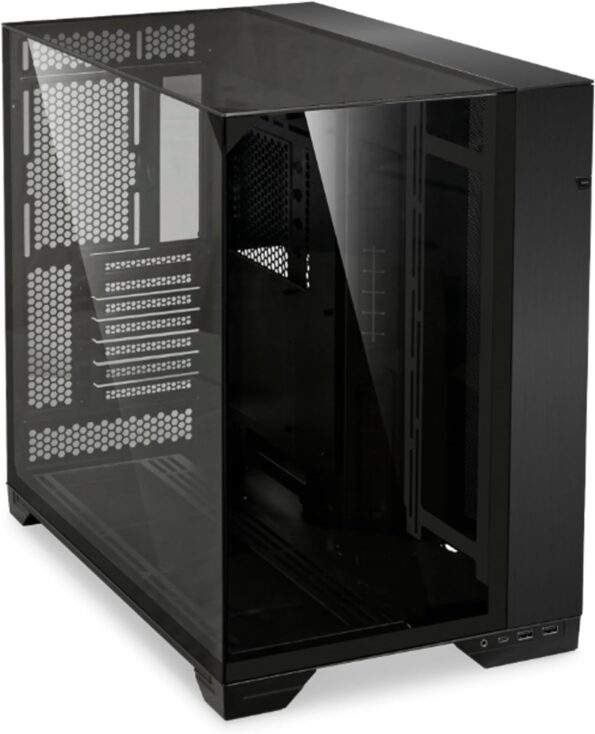

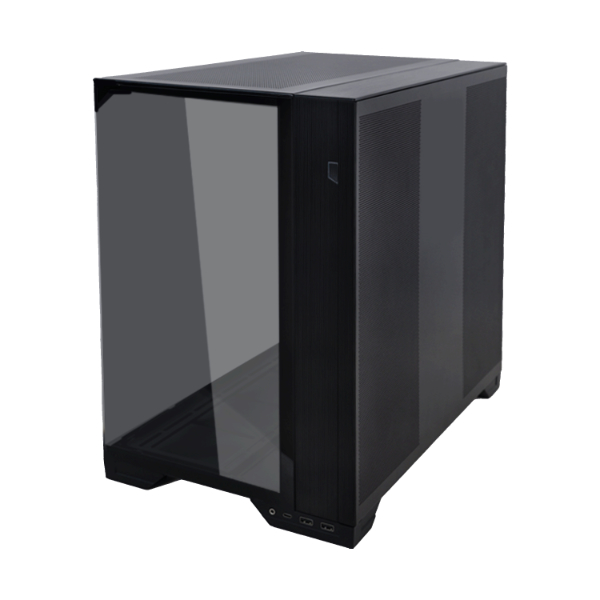

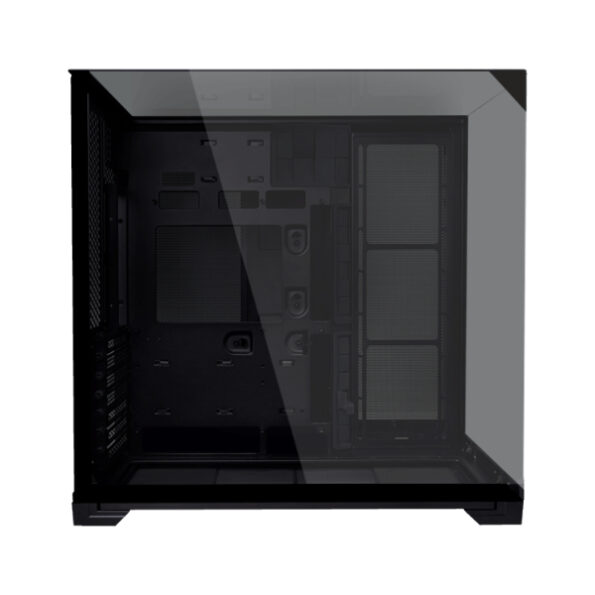

Lian Li O11 Vision Compact Black

 571,34

Brand: Lianli

Description

  • Two top panel options: mesh or tempered glass

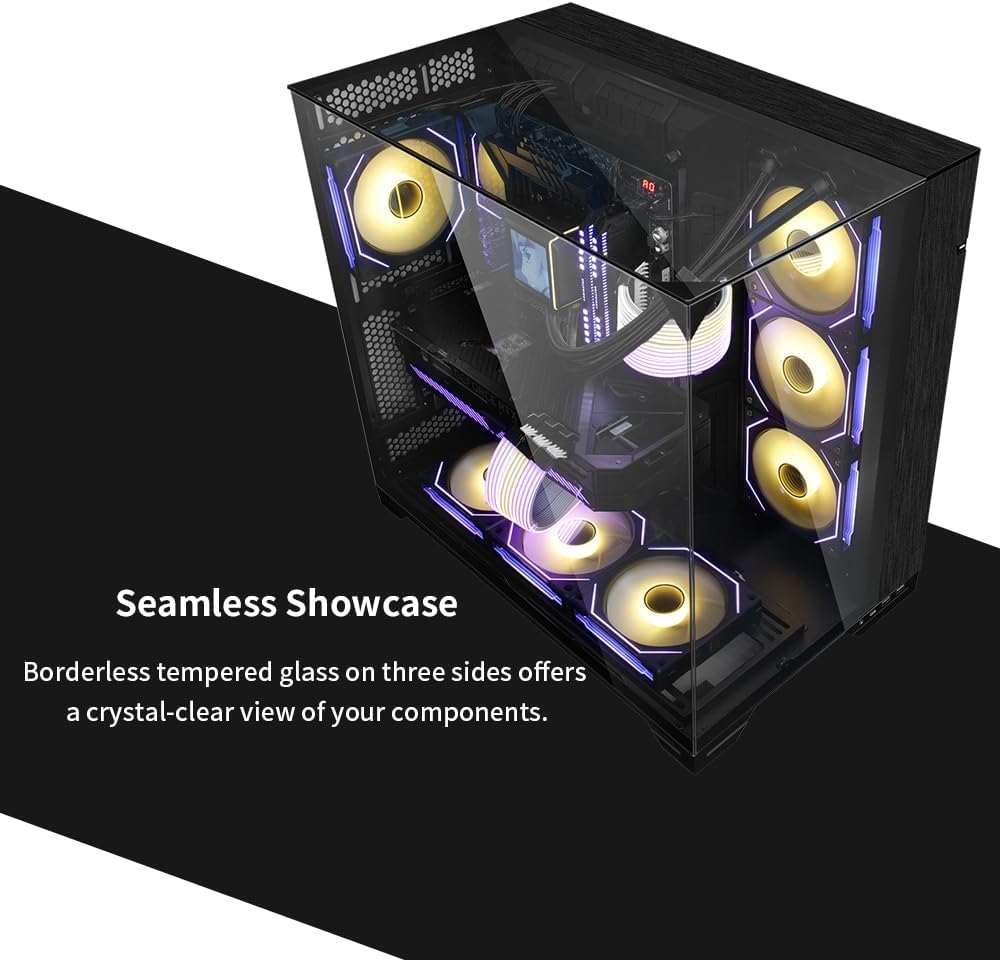

  • Vision mode with tempered glass for an uninterrupted view of components

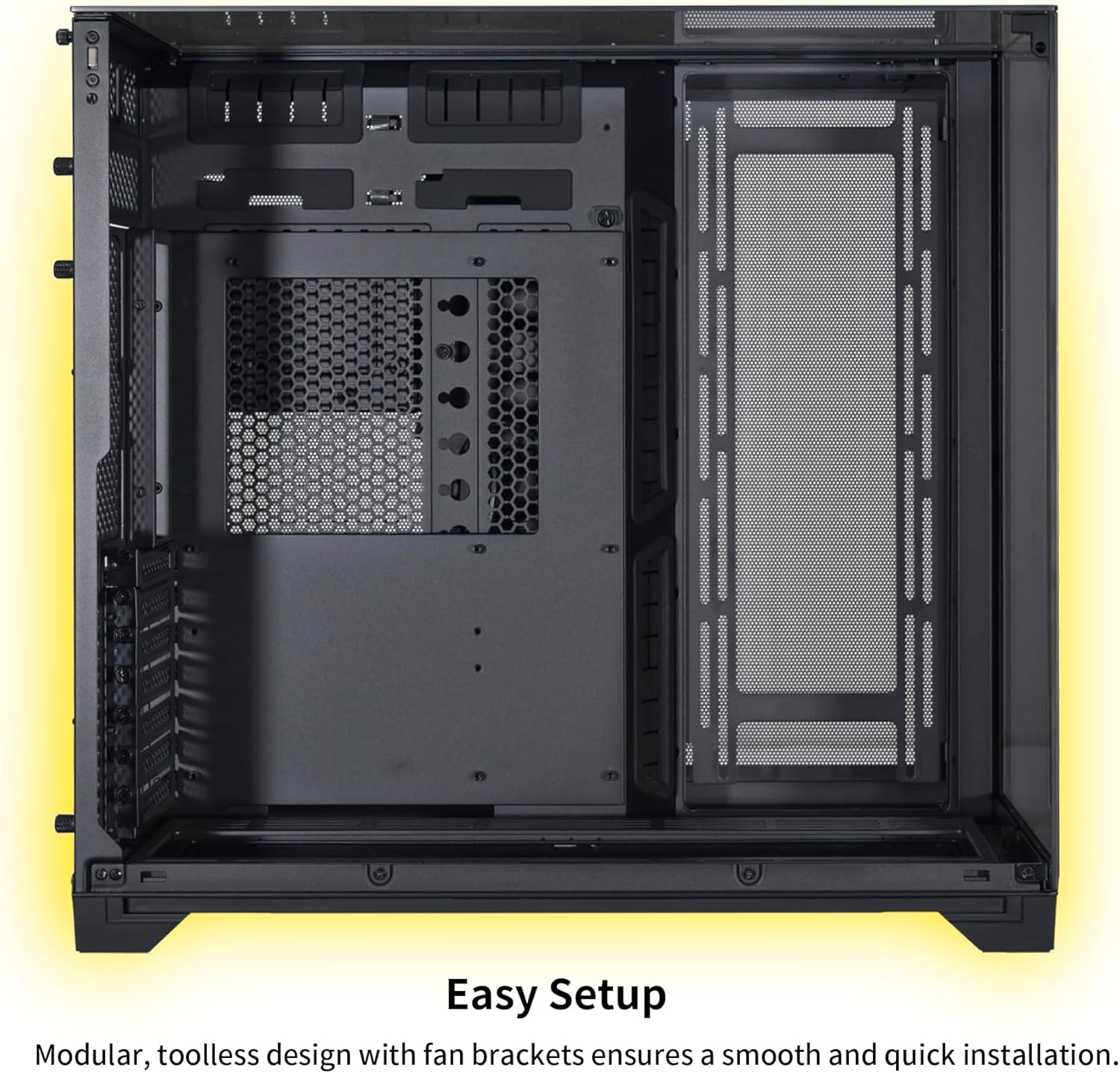

  • Mesh mode with fan bracket for additional radiator or fan support
  • Supports up to 11 fans and a maximum of 360mm large radiator
  • Compatible with back-connect ATX motherboards
  • Hidden AIO tube design for a streamlined appearance

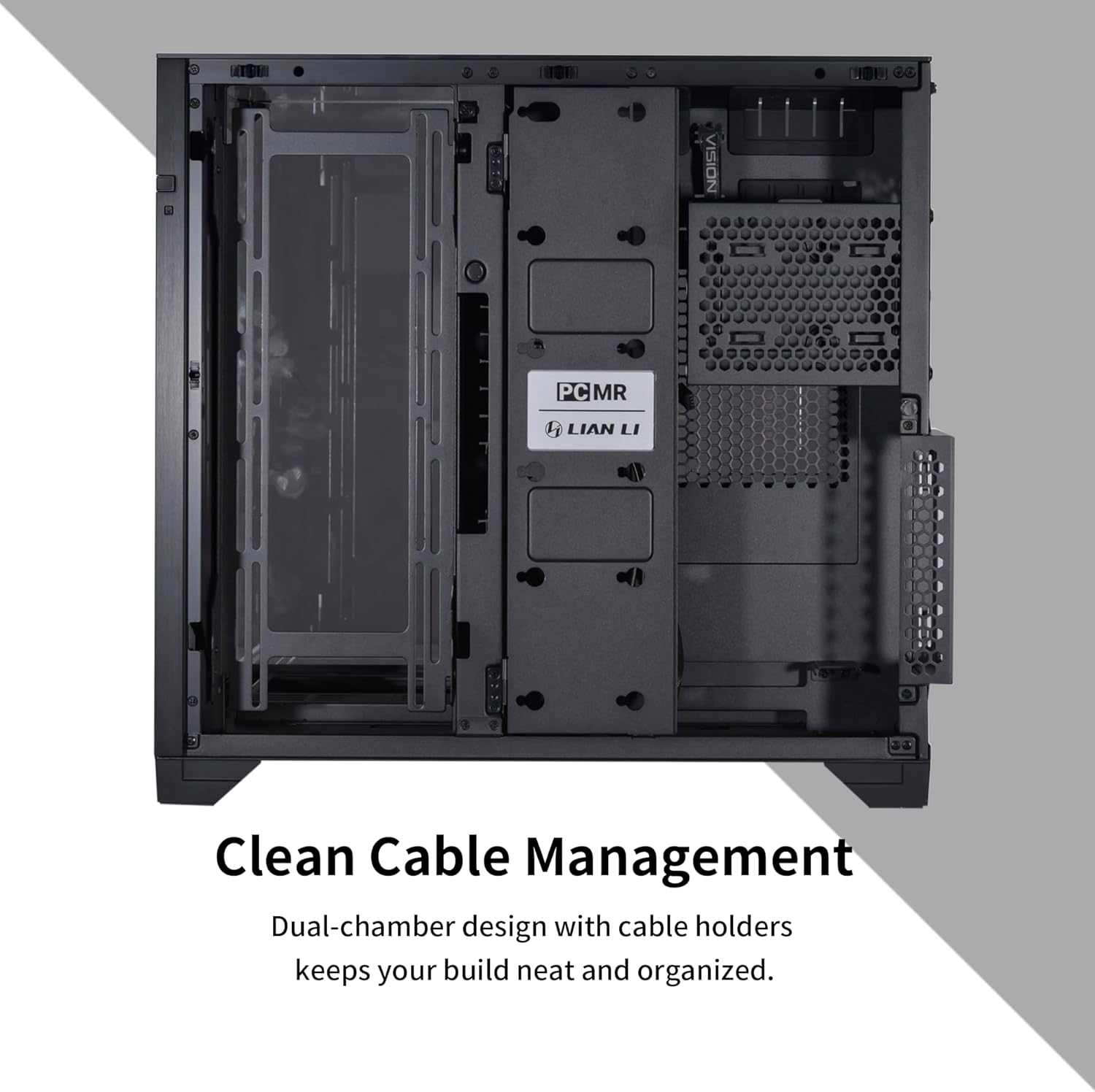

  • Dual-chamber layout with cable management compartment and cable holders

Out of stock

  ... people are viewing this right now

  Share
DESCRIPTION

SPECIFICATION

Category Specifications
Model O11 Vision (Compact)
Color Black (Exterior + Interior)
Case Type Mid-Tower (Dual Chamber)
Dimensions (H?W?D) 400 ? 285 ? 420 mm?(15.7 ? 11.2 ? 16.5 in)
Material Steel Frame +?4mm Tempered Glass?(Front/Side/Top)
Weight 9.8 kg (21.6 lbs)
Motherboard Support ATX, Micro-ATX, Mini-ITX
Drive Bays -?3? 2.5" SSD -?2? 3.5" HDD?(or 4? 2.5")
Expansion Slots 7+2 (Vertical GPU Support)
Front I/O Panel -?1? USB 3.2 Gen2 Type-C -?2? USB 3.0 -?1? HD Audio/Mic Combo
Cooling Support -?Top: 3?120mm or 2?140mm -?Side: 3?120mm -?Bottom: 3?120mm
Radiator Support -?Top: 360mm -?Side: 360mm -?Bottom: 280mm
Max GPU Length 420mm?(With front-mounted radiator)
Max CPU Cooler Height 167mm
PSU Support ATX (Max 220mm Length, Not Included)
Special Features -?270? Panoramic Glass Design -?Tool-Free Side Panels -?Dual-Chamber Layout -?Vertical GPU Mount Included -?Optimized Airflow

Cooling & Airflow Configuration

??Best Airflow Setup:
  • Bottom + Side: 3?120mm intake
  • Top: 3?120mm exhaust
??Water Cooling Support:
  • Side + Top: Dual 360mm radiators
  • Bottom: 280mm radiator
