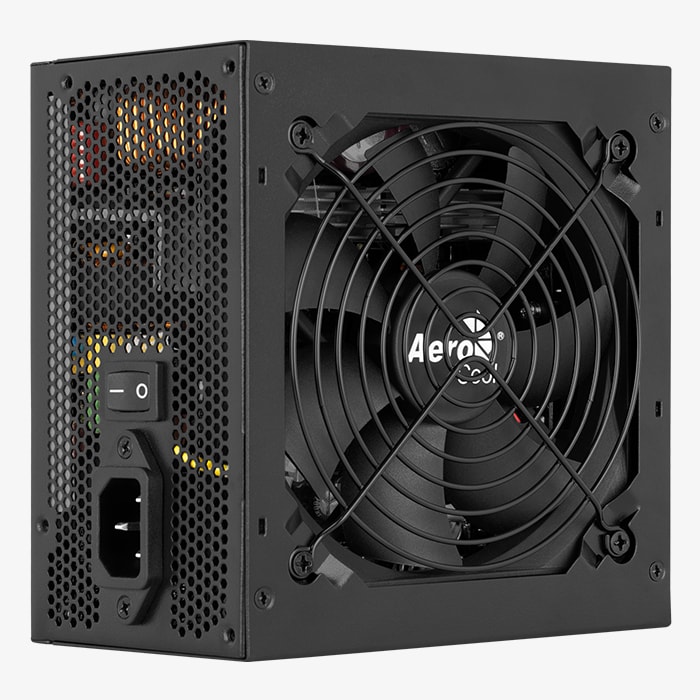

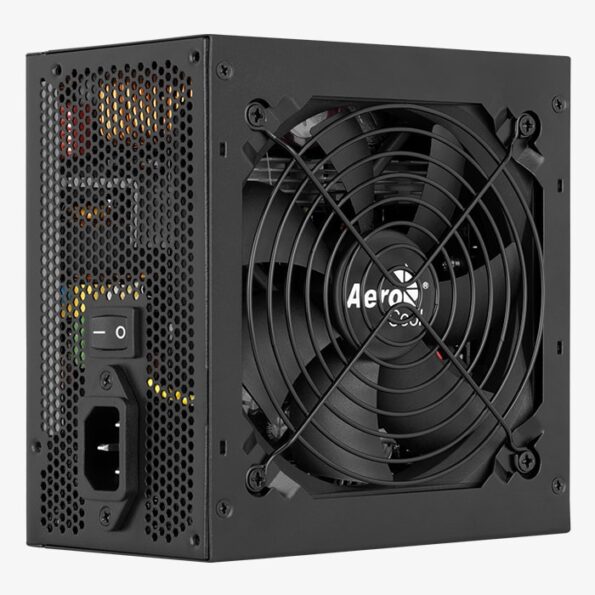

AEROCOOL INTEGRATOR GOLD 750W POWER SUPPLY
449,00
Description
-
750W output with 80+ Gold efficiency rating.
-
Stable power delivery for gaming and workstation builds.
-
Semi-modular design reduces cable clutter.
-
120mm silent fan with optimized cooling.
-
Multiple protections: OVP/OPP/SCP/UVP.
-
Japanese capacitors ensure durability and performance.
-
Ideal for mid-to-high-end gaming PCs.
SPECIFICATION
| Category | Details |
|---|---|
| Wattage | 750W Continuous |
| Efficiency | 80 PLUS Gold Certified?(90% @ 50% load) |
| Form Factor | ATX (150 x 140 x 86mm) |
| Modularity | Non-Modular?(Fixed cables) |
| Cooling | 120mm Hydro-Dynamic Bearing Fan |
| Protections | OVP/OPP/SCP/UVP/OCP/OTP |
| Input Voltage | 100-240V (Full Range) |
2. Connectors & Rails
| Connector Type | Quantity |
|---|---|
| 24-pin ATX | 1x |

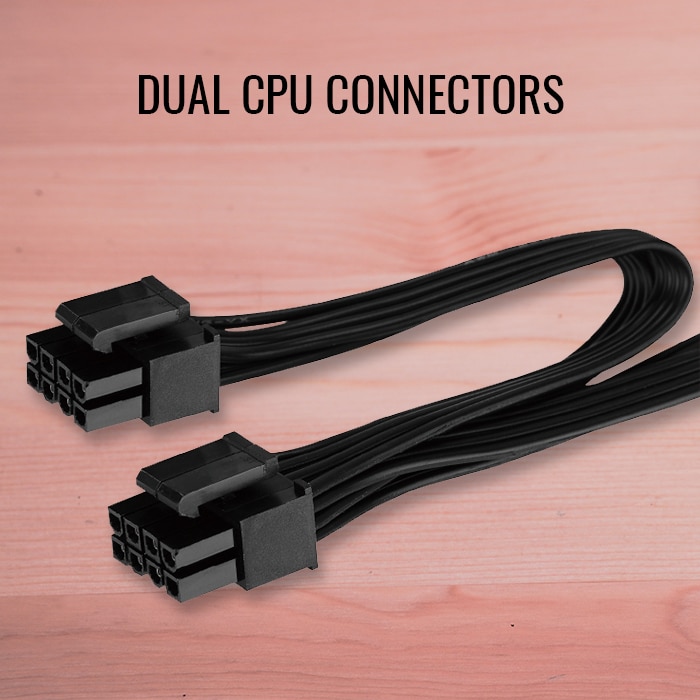

| EPS (CPU 4+4pin) | 2x (Supports high-end CPUs) |
| PCIe 6+2pin | 4x?(Dual 8-pin GPU support) |
| SATA | 6x |
| Molex | 3x |
| Floppy | 1x (Legacy) |
3. Electrical Performance
-
+12V Rail: Single Rail (62A/744W)
-
Ripple Suppression: <30mV (ATX standard)
-
Hold-up Time: >16ms
-
MTBF: 100,000 hours @ 25?C
4. Key Features
-
Japanese Capacitors: Primary side only (Teapo/Taiwan secondary)
-

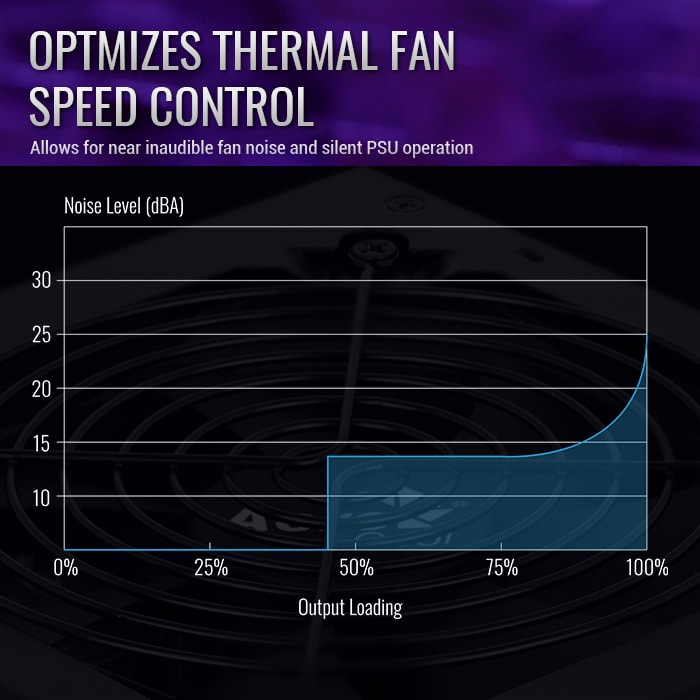

Silent Operation: Fan operates at <22dB under 40% load
-

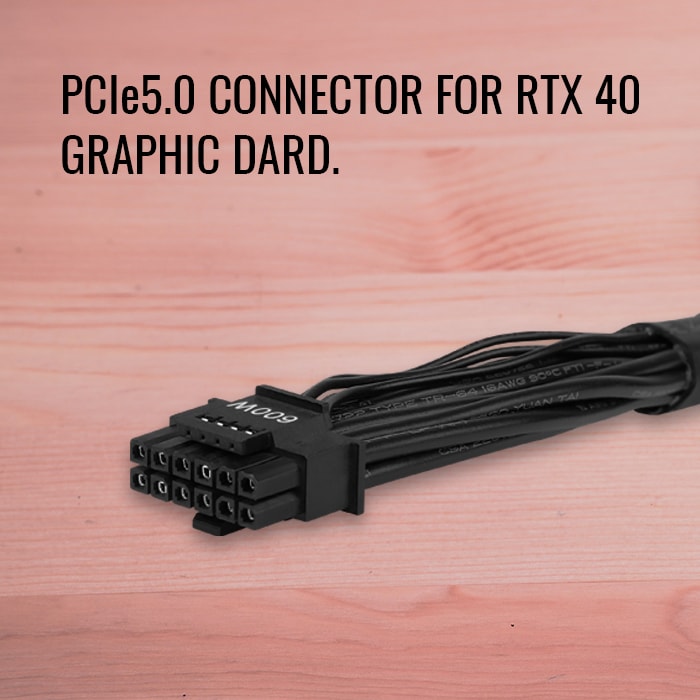

High Current PCIe: Supports RTX 4070 Ti/4080 (with adapter)
-
Stable Voltage Regulation: ?3% on +12V/+5V/+3.3V rails
